| รายละเอียดสินค้า |

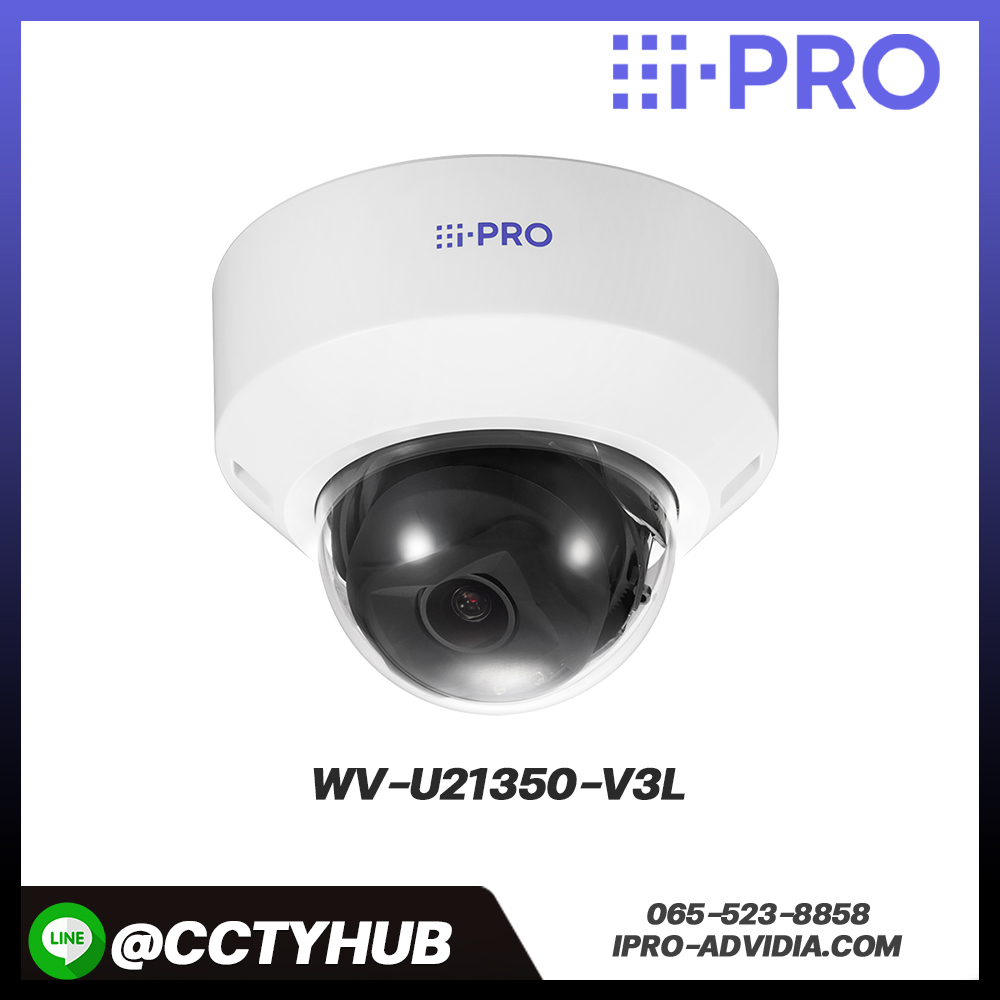

Camera
| COMPONENT |
SPECIFICATION |
| Image Sensor |
Approx. 1/2.8 type CMOS image sensor |
| Scanning Area |
5.57 mm (H) × 3.13 mm (V) {7/32 inches (H) × 1/8 inches (V)} |
| Minimum Illumination |
Color :
0.05 lx (30IRE, F1.6, 1/30 s, AGC: 11)*
0.06 lx (50IRE, F1.6, 1/30 s, AGC: 11)
0.004 lx (50IRE, F1.6, 16/30 s, AGC: 11)*
BW :
0 lx (50IRE, F1.6, 1/30 s, AGC: 11, IR LED: On)
0.03 lx (50IRE, F1.6, 1/30 s, AGC: 11)
0.002 lx (50IRE, F1.6, 16/30 s, AGC: 11)*
* Converted value |
| White Balance |
ATW1/ ATW2/ AWC |
| Shutter Speed |
[30 fps mode] 1/30 Fix to 1/10000 Fix
[25 fps mode] 1/25 Fix to 1/10000 Fix |
| Maximum Shutter |
[30 fps mode] Max. 1/4000 s to Max. 16/30 s
[25 fps mode] Max. 1/4000 s to Max. 16/25 s |
| Intelligent Auto |
On/Off |
| Super Dynamic |
On/Off (Range : 0 to 31) |
| Dynamic Range |
Max. 120 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch |
The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation |
Back light compensation (BLC) / High light compensation (HLC) / Off (Range : 0 to 31)
*only when Super Dynamic/ Intelligent Auto: Off |
| Fog Compensation |
On/Off (Range : 0 to 8)
*only when Intelligent Auto / Auto contrast adjust: Off |
| Maximum Gain (AGC) |
The level can be set in the range of 0 to 11. |
| Color/BW (ICR) |
Off/ On(IR Light Off)/ On(IR Light On)/ Auto1(IR Light Off)/ Auto2(IR Light On)/ Auto3(SCC) |
| IR LED Light |
Maximum irradiation distance:
42 m {Approx. 138 ft} (30IRE)*
30 m {Approx. 98 ft} (50IRE)
* Converted value |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) |
On/ Off (4 areas available) |
| Scene Change Detection (SCD) |
On/ Off (1 area available) |
| Audio Detection |
On/ Off |
| AI Sound Classification |
Selectable from Gunshot, Yell, Vehicle horn, Glass break |
| Analytics |
AI Video Motion Detection |
| Maximum No. of Applications |
1 (Non AI app) |
| Privacy Zone |
On/Off (Up to 8 zones available) |
| VIQS |
On/Off (Up to 8 zones available) |
| Image Rotation |
0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) |
On/Off
Up to 40 characters, Up to 2 lines (alphanumeric characters, marks) |
Lens
| COMPONENT |
SPECIFICATION |
| Optical Zoom |
3.2x (Motorized zoom / Motorized focus) |
| Digital (electronic) Zoom |
max 9.6x |
| Focal Length |
3.2 mm – 10.2 mm {1/8 inches – 13/32 inches} |
| Angular Field of View |
[16:9 mode]
Horizontal: 30° (TELE) – 112° (WIDE)
Vertical: 17° (TELE) – 57° (WIDE)
[4:3 mode]
Horizontal: 23° (TELE) – 79° (WIDE)
Vertical: 17° (TELE) – 57° (WIDE) |
| Adjusting Angle |
Horizontal(PAN) angle: -105 ° to +255 °
Vertical(TILT) angle: -30 ° to +85 °
Azimuth(YAW) angle: -100 ° to +100 °- |
| Maximum Aperture Ratio |
1:1.6 (WIDE) – 1:3.2 (TELE) |
| Focus Range |
2.0m {78-3/4 inches} – ∞ |
| Aperture Range |
F1.6 - close |
DORI
| COMPONENT |
SPECIFICATION |
| Detect (25ppm / 8ppf) |
143.3m {470.2ft} (TELE) 25.9m {85ft} (WIDE) |
| Observe (62.5ppm / 19ppf) |
57.3m {188.1ft} (TELE) 10.4m {34ft} (WIDE) |
| Recognize (125ppm / 38ppf) |
28.7m {94ft} (TELE) 5.2m {17ft} (WIDE) |
| Identify (250ppm / 76ppf) |
14.3m {47ft} (TELE) 2.6m {8.5ft} (WIDE) |
System on Chip
| COMPONENT |
SPECIFICATION |
| System on Chip (SoC) |
Ambarella CV25M |
Browser GUI
| COMPONENT |
SPECIFICATION |
| GUI / Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser *1 |
Microsoft Edge, Firefox, Google Chrome |
Network
| COMPONENT |
SPECIFICATION |
| Network IF |
10BASE-T/100BASE-TX, RJ45 connector |
| Resolution |
[16:9mode(30fps mode)][16:9mode(25fps mode)]
1920x1080/1280x720/640x360/320x180
[4:3mode(30fps mode)][4:3mode(25fps mode)]
1280x960/640x480/320x240 |
| H.265/H.264 Transmission Priority/Type |
[Transmission priority]
Constant bit rate/ VBR/ Frame rate/ Best effort
[Transmission type]
Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| No. of Stream |
4 |
| JPEG (MJPEG) Image Quality |
10 steps: 0(SUPER FINE) - 9(LOW) |
| Smart Coding |
[GOP(Group of pictures) control]
Off/ Low (Variable GOP 1s-8s)/Mid (Variable GOP 4s-16s)/ Advanced (Fixed GOP 60 seconds with 1 second Key frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.
[Smart VIQS]
On (High)/ On (Low)/ Off
[Smart P-picture control]
On/Off |
| Audio Compression Method *2 |
G.726 (ADPCM): 16 kbps/ 32 kbps
G.711: 64 kbps
AAC-LC 64 kbps/ 96 kbps/ 128 kbps |
| Audio Transmission Mode |
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol |
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT |
| No. of Simultaneous Users |
Up to 14 users (Depends on network conditions) |
| Secure |
FIPS 140-3 level 3 (NXP® EdgeLock® SE052F),
Device Certificate GlobalSign® pre-installed, HTTPS,
User authentication, digest authentication, Host authentication,
IEEE802.1X, System log, Image transmission log, brute-force protection,
Alteration Detection, Secure boot, Signed firmware |
| SDXC/SDHC/SD Memory Card (Option) |
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB |
| Mobile Terminal Compatibility |
iPad / iPhone (iOS 8.0 or later), Android™ terminals |
| ONVIF®Profile |
G / M / S / T |
Alarm
| COMPONENT |
SPECIFICATION |
| Alarm Source |
VMD alarm, SCD alarm, Command alarm, Audio detection alarm |
| Alarm Actions |
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT |
SPECIFICATION |
| Audio Input |
ø3.5 mm stereo mini jack
[For microphone input]
Recommended applicable microphone: Plug-in power type
(Sensitivity of microphone: –51 dB to –38 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance: Approx. 2 kΩ (unbalanced)
Supply voltage: 2.5 V ±0.5 V
[For line input]
Input level: Approx. -10 dBV |
| Audio Output |
ø3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance: Approx. 600 Ω (unbalanced)
Output level: -20 dBV |
| External I/O Terminals |
- |
| Monitor Output |
- |
General
| COMPONENT |
SPECIFICATION |
| Safety |
UL (UL62368-1 3Ed), c-UL (CAN/CSA C22.2 NO.62368-1-19), IEC62368-1 3Ed. |
| EMC |
FCC Part15 Subpart B ClassA, ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 |
| Power Source / Power Consumption |
[Power Source]
PoE （IEEE802.3af Compliant）
[Power Consumption]
PoE DC 48 V ：200 mA／ Approx. 9.6 W（Class 0 device） |
| Ambient Operating Temperature |
-10 °C to +50 °C {+14 °F to +122 °F} |
| Ambient Operating Humidity |
10 % to 90 % (no condensation) |
| Water and Dust Resistance |
IP42 Conformity |
| Dimensions |
ø129.5 mm x 102 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}
Dome radius 40 mm {1-9/16 inches} |
| Mass (approx.) |
Approx. 380 g {0.84 lbs} |
| Finish |
Main body: ABS resin, i-PRO white)
Dome cover: Acrylic resin, Clear |
| Easy Kitting |
Supported |
|
