| รายละเอียดสินค้า |

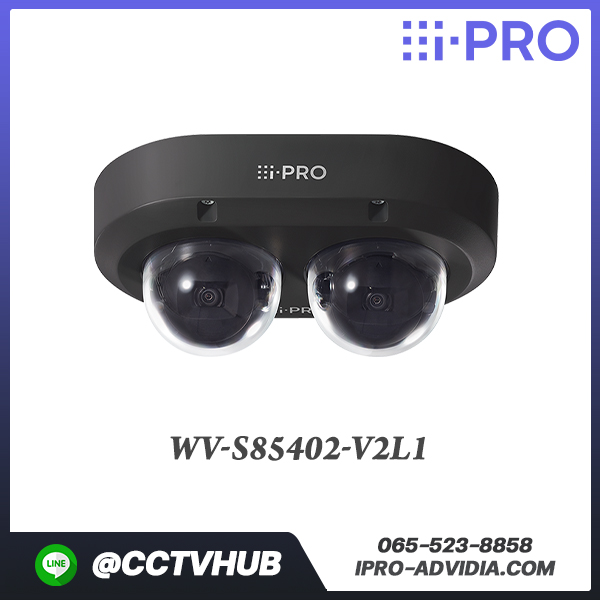

Camera
| COMPONENT |
SPECIFICATION |
| Image Sensor |
2x 1/2.7 type CMOS image sensor |
| |
5.38 mm(H) x 3.02 mm(V)
{7/32 inches(H) × 1/8 inches(V)} |
| Minimum Illumination |
Color :
0.21 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.3 lx (50IRE, F2.0, 1/30s, AGC:11)
0.019 lx (50IRE, F2.0, 16/30s, AGC:11)*
BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.12 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0075 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value |
| White Balance |
ATW1/ ATW2/ AWC |
| Maximum shutter |
30 fps mode: Max.1/10000s to Max.16/30s
25 fps mode: Max.1/10000s to Max.16/25s |
| Intelligent Auto |
On / Off |
| Super Dynamic |
On / Off,
The level can be set in the range of 0 to 31. |
| Dynamic Range |
108 dB max.
(Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch |
The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation |
BLC/ HLC/ Off
The level can be set in the range of 0 to 31.
(only when Super Dynamic/ Intelligent Auto: Off) |
| Fog Compensation |
On/ Off
The level can be set in the range of 0 to 8.
(only when Intelligent Auto/ Auto contrast adjust: Off) |
| Maximum Gain (AGC) |
The level can be set in the range of 0 to 11. |
| Color/BW (ICR) |
Off/On(IR Light Off)/On(IR Light On)/Auto1(IR Light Off)/Auto2(IR Light On)/Auto3(SCC) |
| IR LED Light |
High/Middle/Low/Off
Maximum irradiation distance :
40 m {Approx. 131 ft} (30IRE)*
30 m {Approx. 99 ft} (50IRE)
* Converted value |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) |
On / Off,
4 areas available |
| Scene Change Detection (SCD) |
On / Off,
1 areas available |
| Audio Detection |
On/Off |
| AI Sound Classification |
Selectable from Gunshot, Yell, Vehicle horn, Glass break |
| AI Analytics |
AI Video Motion Detection, AI Face Detection,
AI People Detection, AI Vehicle Detection,
AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection
For details :
https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
3rd party applications are also available.
https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list |
| Privacy Zone |
On/ Off
(up to 8 zones available) |
| VIQS |
On / Off
(up to 8 zones available) |
| Image Rotation |
0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) |
On/ Off,
Up to 40 characters, Up to 2 Lines
(alphanumeric characters, marks) |
| Focus Adjustment |
Auto focus |
Lens
| COMPONENT |
SPECIFICATION |
| Optical zoom |
2.5x (Motorized zoom / Motorized focus) |
| Extra zoom |
max 10.5x (when resolution is 640x360) |
| Focal length |
2.9 mm{1/8 inches} – 7.3 mm{1/4 inches} |
| Angular Field of View |
Horizontal：43 ° (TELE)-100°(WIDE)
Vertical：24 ° (TELE) - 56°(WIDE) |
| Maximum Aperture Ratio |
1：2.0（WIDE） - 1：3.0（TELE） |
| Focus range |
1 m {3.28 ft} – ∞ |
DORI
| COMPONENT |
SPECIFICATION |
| Detect (25ppm / 8ppf) |
Wide: 45.1 m / 148 ft, Tele: 136.5 m / 447.8 ft |
| Observe (62.5ppm / 19ppf) |
Wide: 18.0 m / 59.2 ft, Tele: 54.6 m / 179.1 ft |
| Recognize (125ppm / 38ppf) |
Wide: 9.0 m / 29.6 ft, Tele: 27.3 m / 89.6 ft |
| Identify (250ppm / 76ppf) |
Wide: 4.5 m / 14.8 ft, Tele: 13.6 m / 44.8 ft |
System on Chip (SoC)
| COMPONENT |
SPECIFICATION |
| System on Chip (SoC) |
Ambarella CV2 |
Adjusting Angle
| COMPONENT |
SPECIFICATION |
| Adjusting Angle |
Camera 1, 2:
Horizontal: -50° to +230° (Adjust by horizontal (PAN) angle)
Vertical: +10° to +105° (Adjust by vertical (TILT) angle)
Yaw: ±90° (Adjust by azimuth (YAW) angle) |
Browser GUI
| COMPONENT |
SPECIFICATION |
| Camera Control |
Brightness, AUX On / Off |
| Audio |
Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High |
| GUI / Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser |
Microsoft Edge, Firefox, Google Chrome *1 |
Network
| COMPONENT |
SPECIFICATION |
| Network IF |
10BASE-T/100BASE-TX/1000BASE-T, RJ45 connector |
| Resolution H.265/ H.264/ JPEG (MJPEG) |
[16:9 mode]
2688 x 1520 / 2560x1440 / 1920 x 1080 / 1280 x 720 / 640×360/320×180 |
| H.265/H.264 |
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port (AUTO) / Unicast port (MANUAL) / Multicast |
| JPEG |
[Image Quality]
10 steps |
| Smart Coding |
GOP(Group of pictures) control :
Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/Advanced (Fixed GOP 60 seconds with 1 second Key frame)/Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.
Smart VIQS :
On(High)/On(Low)/Off
Smart P-picture control :
On/Off |
| Audio Compression |
G.726（ADPCM）32 kbps/16 kbps,
G.711 64 kbps, AAC-LC 64kbps/96kbps/128kbps *2 |
| Audio Transmission Mode |
Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) |
| Supported Protocol |
IPv6: TCP／IP、UDP／IP、HTTP、HTTPS、SSL/TLS、SMTP、DNS、NTP、SNMPv1/v2/v3、DHCPv6、RTP、MLD、ICMP、ARP、IEEE 802.1X、DiffServ、LLDP、MQTT
IPv4： TCP／IP、UDP／IP、HTTP、HTTPS、SSL/TLS、RTSP、RTP、RTP／RTCP、SMTP、DHCP、DNS、DDNS、NTP、SNMPv1/v2/v3、UPnP、IGMP、ICMP、ARP、IEEE 802.1X、DiffServ, SRTP、LLDP、MQTT |
| No. of Simultaneous Users |
24 (Number of sessions that can connect to cameras at the same time) |
| Secure |
FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
HTTPS, User authentication, Digest authentication, Host authentication,
IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware |
| SDXC/SDHC/SD Memory Card |
microSDXC memory card：64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card：4 GB, 8 GB, 16 GB, 32 GB
microSD memory card ：2 GB |
| Mobile Terminal Compatibility |
iPad / iPhone (iOS 8.0 or later),
AndroidTM terminals |
| ONVIF® Profile |
G / M / S / T |
Alarm
| COMPONENT |
SPECIFICATION |
| Alarm Source |
3 terminals input, VMD alarm, SCD alarm,
Command alarm, Audio detection alarm |
| Alarm Actions |
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT |
SPECIFICATION |
| Audio input *3 |
ø3.5 mm stereo mini jack
For microphone input :
Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.4 V ±0.5 V
For line input :
Input level: Approx. –10 dBV |
| Audio Output *3 |
ø3.5 mm stereo mini jack (Audio output is monaural.)
Output impedance: Approx. 600 Ω (unbalanced)
Output level: –20 dBV |
| External I/O Terminals *3 |
ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1)
ALARM IN 3 (Alarm input 3/ ALARM OUT /AUX OUT) (x1) |
| Monitor Output |
- |
| Wi-Fi USB Adapter |
Yes (for adjustment) |
General
| COMPONENT |
SPECIFICATION |
| Safety |
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC |
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 |
| Power Source and Power Consumption |
PoE+ (IEEE802.3at compliant) : DC 54 V : 410 mA/Approx. 22.2 W (Class 4 device) |
| Ambient Operating Temperature |
–40 °C to +60 °C* {–40 °F to 140 °F}(Power On range: –20 °C to +60 °C {–4 °F to 140 °F})
Maximum temperature according to NEMA TS 2 (2.2.7) : 74℃(165℉)
*When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50 °C {+122 °F}. |
| Ambient Operating Humidity |
10 % to 100 % (no condensation) |
| Anti-Condensation System |
Temish element |
| Water and Dust Resistance |
IP67/IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant |
| Shock Resistance |
IK10 (IEC 62262) |
| Wind Resistance |
Up to 40 m/s {approx. 89 mph} |
| Other standard support |
NEMA TS 2 (2.2.7-2.2.9) |
| Dimensions |
When using the attachment plate only:
250 mm(D)× 150 mm (W) × 105 mm (H) {9-27/32" inches (D) ×5-29/32 inches (W) ×4-1/8 inches (H)} |
| Mass (approx.) |
Approx. 1.8 kg |
| Finish |
Main body: Aluminum die cast, Black
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Dome cover: PC resin, Clear |
|
