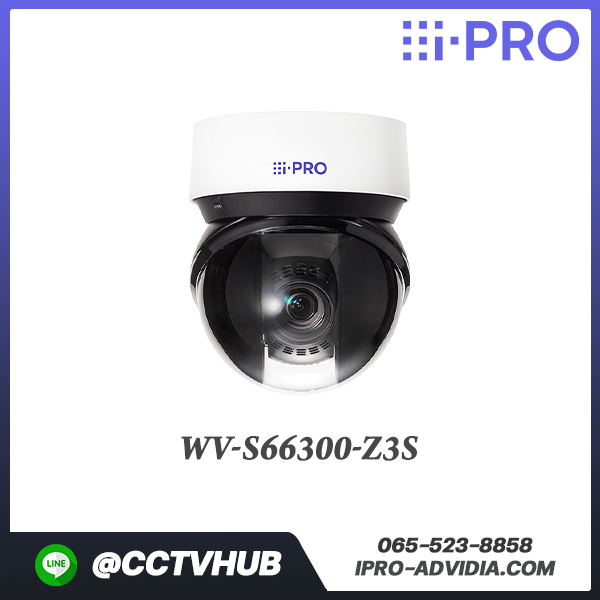

กล้อง PTZ i-PRO รุ่น WV-S66300-Z3S 2MP(1080p) Outdoor PTZ Network Camera with 32x Optical Zoom Lens ,AI Engine ,Heavy Salt Damage Resistance

1.     The Rapid PTZ Network Camera shall deliver H.265 stream and H.264 stream.

2.     The Rapid PTZ Network Camera shall produce a resolution of 1920x 1080 pixels at up to 30fps with a 16:9 aspect ratio.

3.     The Rapid PTZ Network Camera shall produce a resolution of 1280x960 pixels at 30fps with a 4:3 aspect ratio.

4.     The Indoor PTZ Network Camera shall utilize an approximate 1/2.8 res-inch type high sensitivity CMOS image sensor.

5.     The Indoor PTZ Network Camera shall be equipped with 32 times optical zoom and 48 times

HD extra optical zoom at HD resolution.

6.     The Rapid PTZ Network Camera shall feature image stabilization to capture stable images even when installed on the plenty-vibration place.

7.     The Rapid PTZ Network Camera shall feature a 132dB wide dynamic range based on Enhanced Super Dynamic and Adaptive Black Stretch technology (ABS).

8.     The Rapid PTZ Network Camera shall produce a color image with a minimum illumination of 0.001 lux and a monochrome image with 0.0004 lux at F1.6, maximum shutter of 16/30s and maximum gain mode 11.

9.     The Rapid PTZ Network Camera shall generate multiple simultaneous video streams of up to four (4) H.265 (Main profile) or H.264 (High profile) streams and JPEG streams.

10.  The Rapid PTZ Network Camera shall be equipped with intelligent auto mode, the technology for shooting license plate and person’s face more clearly.

11.  The Rapid PTZ Network Camera shall be equipped with GOP control and Smart Facial coding which controls the image quality of a stationary area, a moving area, and a face, as bitrate reducing technology.

12.  The Rapid PTZ Network Camera shall produce encrypted stream.

13.  The Rapid PTZ Network Camera shall realize SSL / TLS communication with CA certificate.

14.  A user shall be able to view videos on a PC using a browser.

15.  A user shall be able to view videos on a smartphone and tablet using viewer software for iPhone and Android.

16.  The Rapid PTZ Network Camera shall offer Video Motion Detection (VMD) with four (4) programmable detection areas, 15 steps sensitivity level and 10 steps detection size.

17.  The Rapid PTZ Network Camera shall offer an optional intelligent VMD (i-VMD) function which provides intruder detection, loitering detection, direction detection, scene change detection, object detection and cross line detection.

18.  The Rapid PTZ Network Camera shall offer an optional face detection function.

19.  The Rapid PTZ Network Camera shall have Fog compensation function.

20.  The Rapid PTZ Network Camera shall have High light compensation (HLC) function.

21.  The Rapid PTZ Network Camera shall have Super Chroma Compensation (SCC) which realizes a better color reproducibility in the low illumination.

22.  The Rapid PTZ Network Camera shall provide up to thirty-two (32) areas of electronic privacy masking.

23.  The Rapid PTZ Network Camera shall offer the prioritized stream control which transmits a video stream to a specified client PC or recorder preferentially.

24.  The Rapid PTZ Network Camera shall have an SD memory card slot that supports SD, SDHC and SDXC memory cards for local storage.

25.  The Rapid PTZ Network Camera shall offer full-duplex bi-directional audio communication capability between the camera and monitoring site.

26.  The Rapid PTZ Network Camera shall have three (3) alarm sources of terminal input, VMD, command alarm, audio detection alarm and auto track alarm that activate the processes such as SDXC/ SDHC/SD memory recording, E-mail notification, HTTP alarm notification, Indication on browser, FTP image transfer and TCP alarm protocol output.

27.  The Rapid PTZ Network Camera shall conform to the ONVIF profile S and profile G.

B.    Camera

 1.   Image Sensor                                  Approx. 1/2.8 type CMOS image sensor

 2.   Scanning Area                                 5.57 mm (H) × 3.13 mm (V)

{7/32 inches (H) × 1/8 inches (V)}

 3.   Minimum Illumination                        Color : 0.011 lx (30IRE, F1.6, 1/30s)

Color : 0.015 lx (50IRE, F1.6, 1/30s)

BW : 0.006lx (50IRE, F1.6, 1/30s)

 4.   White Balance                                  ATW1 / ATW2 / AWC

 5.   Shutter Speed                                 [60fps mode] 1/60 Fix to 1/10000 Fix

[50fps mode] 1/50 Fix to 1/10000 Fix

 6.   Maximum shutter                             60 fps/30 fps/15 fps mode: Max.1/4000s to Max.16/30s

50 fps/25 fps/12.5 fps mode: Max.1/4000s to Max.16/25s

 7.   Intelligent Auto                                 On / Off

 8.   Super Dynamic                                On / Off, The level can be set in the range of 0 to 31.

 9.   Dynamic Range                               Max.144 dB (Super Dynamic : On, Level 31)

 10. Adaptive Black Stretch                     The level can be set in the range of 0 to 255.

 11. Back Light Compensation/

High Light Compensation                 BLC (Back light compensation) / HLC (High light compensation) / Off

The level can be set in the range of 0 to 31 (only when Super dynamic / Intelligent Auto :Off)

 12. Fog Compensation                           On / Off, The level can be set in the range of 0 to 8

(only when Intelligent auto / auto contrast adjust : Off)

 13. Maximum Gain (AGC)                       The level can be set in the range of 0 to 11.

 14. Color/BW (ICR)                                Off/On/Auto1(Normal)/Auto2(IR Light)/Auto3(SCC)

 15. Digital Noise Reduction                    The level can be set in the range of 0 to 255.

 16. Video Motion Detection (VMD)          On / Off, 4 areas available

 17. Scene Change Detection (SCD)        On / Off, 1 areas available

 18. Audio Detection                               On / Off

 19. AI Sound Classification                    Gunshot, Yell, Vehicle horn, Glass break

 20. AI Analytics                                     AI Video Motion Detection, AI Face Detection,

AI People Detection, AI Vehicle Detection,

AI Non mask Detection, AI Occupancy Detection, AI Scene Change Detection

For details :

https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software

3rd party applications are also available.

https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list

 21. Privacy Zone                                    On / Off, Up to 32 zones available

 22. VIQS                                               On / Off, Up to 8 zones available

 23. Image Stabilizer                               On / Off (Built-in gyro sensor)

 24. Camera Title (OSD)                          On / Off, Up to 40 characters (alphanumeric characters, marks)

 25. Focus Adjustment                            Auto focus

C.    Lens

 1.   Optical zoom                                   32x (Motorized zoom / Motorized Focus)

 2.   Extra zoom                                      Max.48x

(32x-48x when resolution is 1280x720)

 3.   Focal length                                     4.25 - 136 mm {5/32 inches - 5-11/32 inches}

 4.   Angular Field of View                       [16 : 9 mode] Horizontal : 2.4° (TELE) – 65° (WIDE), Vertical : 1.4° (TELE) – 39° (WIDE)(TBD)

[ 4 : 3 mode] Horizontal : 1.9° (TELE) – 51° (WIDE), Vertical : 1.4° (TELE) – 39° (WIDE)(TBD)

 5.   Maximum Aperture Ratio                  1 : 1.6 (WIDE) – 1 : 4.4 (TELE)

 6.   Focus range                                     3.0 m {118-1/8 inches} –∞

 7.   Aperture range                                 F1.6 - close

D.    DORI

 1.   Detect (25ppm / 8ppf)                      Wide: 60.3 m / 197.8 ft, Tele: 1833.2 m / 6014.4 ft

 2.   Observe (62.5ppm / 19ppf)               Wide: 24.1 m / 79.1 ft , Tele: 733.3 m / 2405.8 ft

 3.   Recognize (125ppm / 38ppf)             Wide: 12.1 m / 39.6 ft, Tele: 366.6 m / 1202.9 ft

 4.   Identify (250ppm / 76ppf)                 Wide: 6.0 m / 19.8 ft, Tele: 183.3 m / 601.4 ft

E.    System on Chip

 (SoC)

 1.   System on Chip (SoC)                      Ambarella CV25m

F.    Adjusting Angle

 1.   Adjusting Angle                                Horizontal : 360° Endless Panning, TILT : -20° to +90°, Yaw : 0°

G.    Pan /tilt

 1.   Panning Range                                360° Endless Panning

 2.   Panning Speed                                Manual: Approx. 0.065°/s – 150°/s, Preset: Up to approx. 700°/s

 3.   Tilting Range                                    Operational -20° – +90°

 4.   Tilting Speed                                   Manual: Approx. 0.065°/s –150°/s, Preset: Up to approx. 500°/s

 5.   Preset Positions                              256 positions

 6.   Auto Mode                                       Auto track/ Auto pan/ Preset sequence/ Patrol

 7.   Self Return                                       10 s/ 20 s/ 30 s/ 1 min/ 2 min/ 3 min/ 5 min/ 10 min/ 20 min/ 30 min/ 60 min

 8.   Active ClearSight                              Yes

H.    Browser GUI

 1.   GUI / Setup Menu Language             English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese

 2.   Browser *1                                       Microsoft Edge, Firefox, Google Chrome

I.     Network

 1.   Network IF                                       10Base-T / 100Base-TX, RJ45 connector

 2.   Resolution

H.265/ H.264/ JPEG (MJPEG)          [16:9 mode (60fps mode)],[16:9 mode (30fps mode)],

[16:9 mode (50fps mode)],[16:9 mode (25fps mode)]

1920x1080, 1280x720, 640x360, 320x180

[4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)]

1280x960, VGA, QVGA

[4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)]

2048x1536* , 1280x960, VGA, QVGA

*Used bu super resolution techniques

 3.   H.265/H.264 Transmission Mode/Type *2

[Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort

[Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast

 4.   JPEG                                              [Image Quality] 10 steps

 5.   Smart Coding                                  GOP (Group of pictures) control:

Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/

Advanced(Fixed GOP 60s w/1s key-frame)/

Frame rate control (Variable GOP 4s-16s with frame rate control)

*Advanced and Frame rate control are only available with H.265.

Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off

 6.   Audio compression method *3          G.726 (ADPCM) : 16 kbps / 32 kbps

G.711 : 64 kbps

AAC-LC*5 : 64 kbps / 96 kbps / 128 kbps

 7.   Audio Transmission Mode                Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)

 8.   Supported Protocol                          IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,

DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ

IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP,

DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP,

IEEE 802.1X, DiffServ, SRTP, MQTT, NTCIP

 9.   No. of Simultaneous Users               Up to 14 users (Depends on network conditions)

 10. Secure                                             FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate

GlobalSign® pre-installed,

HTTPS, User authentication, Digest authentication, Host authentication,

IEEE802.1X, System log, Image transmission log, Brute-force protection,

Alteration detection

 11. SDXC/SDHC/SD Memory Card (Option)    H.265 / H.264 recording :

Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure

JPEG recording :

Manual REC / Alarm REC (Pre/Post) / Backup upon network failure

Compatible SDXC/SDHC/SD Memory Card :

microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB

microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB

microSD memory card : 2 GB

 12. Mobile Terminal Compatibility           iPad, iPhone (iOS 8.0 or later), Android™ terminals

 13. ONVIF® Profile                                G / M / S / T

J.    Alarm

 1.   Alarm Source                                   3 terminals input, VMD alarm, Command alarm, Audio detection alarm

 2.   Alarm Actions                                  SDXC/SDHC/SD memory recording, E-mail notification,

HTTP alarm notification Indication on browser, TCP alarm notification output

K.    Input/Output

 1.   Audio Input *4                                  ø3.5 mm stereo mini jack

Recommended applicable microphone: Plug-in power type

(Sensitivity of microphone:-51dB to -38dB (0 dB=1 V/Pa, 1 kHz))

Input impedance: Approx. 2 kΩ (unbalanced)

Supply voltage: 4.0V±0.5V

For line input : Input level : Approx. –10 dBV

 2.   Audio Output *4                               ø3.5 mm stereo mini jack (monaural output)

Output impedance : Approx. 600Ω (unbalanced)

Output level : –20 dBV

 3.   External I/O Terminals *4                  ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)

ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)

L.    General

 1.   Safety                                             UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1

 2.   EMC                                                FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035

 3.   Other Standard                                NEMA-TS2

 4.   Power Source and

Power Consumption                         PoE++ (IEEE802.3bt),

PoE++ DC54V: 700mA/Approx.37.8W (Class 6 device)

 5.   Ambient Operating Temperature        -50 °C to +60 °C * (-58 °F to +140 °F)(PoE++)

(Power On range : –30 °C to +60 °C {–22 °F to +140 °F})(TBD)

Maximum temperature according to NEMA TS 2 (2.2.7) : 74℃(165℉)

* When using with the IR LED light constantly lit, the upper limit of the operating temperature range is +50°C {+122 °F}.

 6.   Ambient Operating Humidity             10 to 100 % (no condensation)

 7.   Anti-Condensation System               Temish element + Heater

 8.   Water and Dust Resistance               IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant

 9.   Shock Resistance                            IK10 (IEC 62262)

 10. Wind Resistance                              Up to 40 m/s {approx. 89 mph}

 11. Dimensions                                     Maximum diameter:φ167mm × 205 mm (H){φ6-9/16 inches × 8-1/16 inches (H)}

Dome radius SR 77.5 mm {SR 3-1/16 inches}

(excluding an attachment for the conduit portion and protruding parts)

 12. Mass (approx.)                                Approx. 3 kg (without attachment)

 13. Finish                                              Main body :

Aluminum die cast (Heavy-salt damage resistance coating), i-PRO white

Outer fixing screws : Stainless steel (Corrosion-resistant treatment)

Dome cover: Polycarbonate resin, Clear

 14. Other                                               Tamper-resistant enclosure *5
