| รายละเอียดสินค้า |

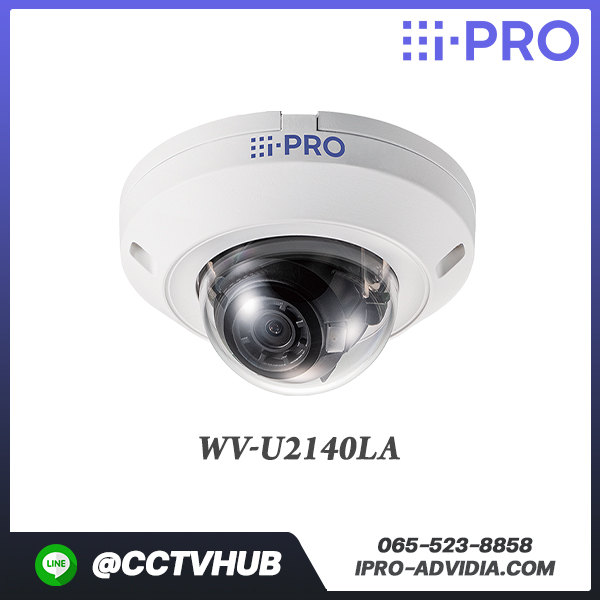

Camera
| COMPONENT |
SPECIFICATION |
| Image Sensor |
Approx. 1/2.7 type CMOS image sensor |
| Effective pixels |
Approx. 5.2 megapixels, 2688(H)×1944(V) |
| Minimum Illumination |
Color :
0.21 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.3 lx (50IRE, F2.0, 1/30s, AGC:11)
0.019 lx (50IRE, F2.0, 16/30s, AGC:11)*
BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.12 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0075 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value |
| White Balance |
ATW1/ ATW2/ AWC |
| Maximum Shutter |
[30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode]Max. 1/10000 s to Max. 16/25 s |
| Intelligent Auto |
On / Off |
| Super Dynamic |
On / Off, the level can be set in the range of 0 to 31. |
| Dynamic Range |
Max.102 dB (Super Dynamic: On, Level: 31) |
| Adaptive Black Stretch |
The level can be set in the range of 0 to 255. |
| Back Light Compensation/High Light Compensation |
BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31.
(only when Super dynamic / Intelligent Auto : Off) |
| Fog Compensation |
On / Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off) |
| Maximum Gain (AGC) |
The level can be set in the range of 0 to 11. |
| Color/BW (ICR) |
Off/ On (IR Light Off)/ On (IR Light On)/
Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) |
| IR LED Light |
High / Middle / Low / Off, Maximum irradiation distance : 20 m {Approx. 65 ft} |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) |
On / Off, 4 areas available |
| Scene Change Detection(SCD) |
On / Off, 1 areas available |
| Privacy Zone |
On / Off (up to 8 zones available) |
| VIQS |
On / Off, Up to 8 zones available |
| Image Rotation |
0° (Off)/ 90°/ 180° (Upside-down)/ 270° |
| Camera Title (OSD) |
On / Off, Up to 20 characters (alphanumeric characters, marks) |
Lens
| COMPONENT |
SPECIFICATION |
| Focal Length |
3.2 mm{1/8 inches} |
| Optical Zoom |
1x |
| Extra zoom |
1.0x - 1.3x(when resolution is 1920x1080) |
| Digital (electronic) zoom |
Choose from 3 levels of x1, x2, x4 |
| Angular Field of View |
[16 : 9 mode] *[4:3 mode] is not supported.
Horizontal : 100°
Vertical : 54° |
| Maximum Aperture Ratio |
1 : 2.0 |
| Focusing Range |
1 m {39-3/8 inches} – ∞ |
DORI
| COMPONENT |
SPECIFICATION |
| Detect (25ppm / 8ppf) |
43.0 m / 141.0 ft |
| Observe (62.5ppm / 19ppf) |
17.2 m / 56.4 ft |
| Recognize (125ppm / 38ppf |
8.6 m / 28.2 ft |
| Identify (250ppm / 76ppf) |
4.3 m / 14.1 ft |
Adjusting Angle
| COMPONENT |
SPECIFICATION |
| Adjusting Angle |
Horizontal (PAN) angle: -175 °– +175 °, Vertical (TILT) angle: -30 °– +80 °
Azimuth (YAW) angle: ±100° |
Browser GUI
| COMPONENT |
SPECIFICATION |
| Camera Control |
Brightness |
| GUI / Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
Network
| COMPONENT |
SPECIFICATION |
| Network IF |
10Base-T / 100Base-TX, RJ45 connector |
| Resolution H.265/H.264 |
[16:9 mode(2688x1520 30fps mode)]
[16:9 mode(2688x1520 25fps mode)]
2688×1520, 1920×1080, 640×360, 320×180
[16:9 mode(30fps mode)]
[16:9 mode(25fps mode)]
2560×1440, 1920×1080, 640×360, 320×180
*[4:3 mode] is not supported. |
| H.265/H.264 |
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port(AUTO) / Unicast port(MANUAL) / Multicast
[Max. frame rate foreach stream]
Stream(1) :
2688x1520(30fps) / 2560x1440(30fps) / 1920x1080(30fps)
Stream(2) :
Off / 640x360(30fps) / 1920x1080(30fps)
Stream(3) :
Off / Off / 640x360(10fps)
JPEG(1) :
2560x1440(1fps) / 2560x1440(1fps) / 2560x1440(1fps)
JPEG(2) :
1920x1080(1fps) / 1920x1080(1fps) / 1920x1080(1fps) |
| JPEG |
[Image Quality]
10 steps |
| Smart Coding |
GOP(Group of pictures) control:
On(Frame rate control)/ On(Advanced)/ On(Mid.)/ On(Low)/ Off
*Frame rate control and Advanced are only available with H.265.
AUTO VIQS: On/ Off |
| Audio Compression |
- |
| Audio Transmission Mode |
- |
| Supported Protocol |
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3,
DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS,
NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP |
| No. of Simultaneous Users |
Up to 14 users (Depends on network conditions) |
| Secure |
Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption |
| SDXC/SDHC/SD Memory Card (Option) |
H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB |
| Mobile Terminal Compatibility |
iPad, iPhone, AndroidTM terminals |
| ONVIF® Profile |
G / S / T |
Alarm
| COMPONENT |
SPECIFICATION |
| Alarm Source |
VMD alarm, SCD alarm, Command alarm |
| Alarm Actions |
SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification, Indication on browser,
TCP alarm notification output |
Input/Output
| COMPONENT |
SPECIFICATION |
| Audio input |
- |
| Audio Output |
- |
| External I/O Terminals |
- |
| Monitor Output |
- |
General
| COMPONENT |
SPECIFICATION |
| Safety |
UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC |
FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035 |
| Power Source and Power Consumption |
PoE (IEEE802.3af compliant) Device :
DC48 V 110 mA, Approx. 5.3 W (Class 2 device) |
| Ambient Operating Temperature |
-10 °C to +50 °C (+14 °F to +122 °F)
{Power On range: 0 °C to +50 °C (+32°F to +122 °F)} |
| Ambient Operating Humidity |
10 to 90 % (no condensation) |
| Dimensions |
ø109 mm x 62 mm (H) {ø4-9/32 inches x 2-7/16 inches (H)}
Dome radius 30.5 mm {1-3/16 inches} |
| Mass (Approx.) |
250 g {0.55 lbs} |
| Finish |
Main body : Aluminum die cast / Polycarbonate resin, i-PRO white
Dome section : Polycarbonate resin, Clear |
|
