| รายละเอียดสินค้า |

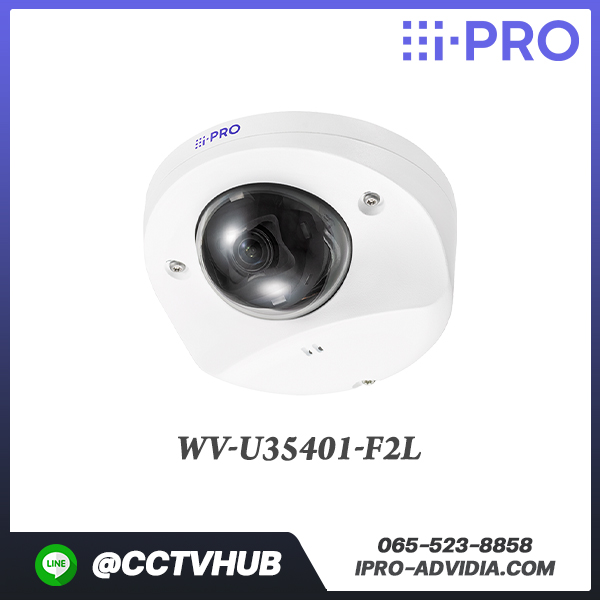

Camera
| COMPONENT |
SPECIFICATION |
| Image Sensor |
Approx. 1/2.7 type CMOS image sensor |
| Scanning Area |
5.43 mm (H) × 3.95 mm (V) {7/32 inches (H) × 5/32 inches (V)} |
| Minimum Illumination |
Color :
0.24 lx (30IRE, F2.1, 1/30s, AGC:11)*
0.34 lx (50IRE, F2.1, 1/30s, AGC:11)
0.0213 lx (50IRE, F2.1, 16/30s, AGC:11)*
BW :
0 lx (50IRE, F2.1, 1/30s, AGC:11, IR LED: On)
0.14 lx (50IRE, F2.1, 1/30s, AGC:11)
0.0088 lx (50IRE, F2.1, 16/30s, AGC:11)*
*Converted value |
| White Balance |
ATW1 / ATW2 / AWC |
| Shutter Speed |
- |
| Maximum Shutter |
30 fps mode: Max.1/10000s to Max.16/30s
25 fps mode: Max.1/10000s to Max.16/25s |
| Intelligent Auto |
On / Off |
| Super Dynamic |
On / Off (Range : 0 to 31) *1 |
| Dynamic Range |
Max.102 dB (Super Dynamic : On, Level : 31) |
| Adaptive Black Stretch |
- |
| Back light Compensation / High light Compensation |
BLC (Back light compensation) / HLC (High light compensation) / Off
*only when Super Dynamic / Intelligent Auto : Off |
| Fog Compensation |
On / Off (Range : 0 to 8)
*only when Intelligent auto / Auto contrast adjust : Off) |
| Maximum Gain (AGC) |
The level can be set in the range of 0 to 11. |
| Color/BW (ICR) |
Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) |
| IR Illumination |
High/ Middle/ Low/ Off
Maximum irradiation distance :
14 m {Approx. 46 ft} (30IRE)*
10 m {Approx. 33 ft} (50IRE)
* Converted value |
| Digital Noise Reduction |
The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) |
On / Off, 4 areas available |
| Scene Change Detection (SCD) |
On / Off, 1 area available |
| Audio Detection |
- |
| AI Sound Classification |
- |
| AI Analytics |
- |
| Privacy Zone |
On / Off, Up to 8 zones available |
| VIQS |
On / Off, Up to 8 zones available |
| Image Stabilizer |
- |
| Camera Title (OSD) |
On / Off, Up to 20 characters (alphanumeric characters, marks) |
Lens
| COMPONENT |
SPECIFICATION |
| Optical Zoom |
1x |
| Extra Zoom |
max 4.0 x (when resolution is 640x360) |
| Digital (electronic) Zoom |
- |
| Focal Length |
2.4mm {3/32inches} |
| Angular Field of View |
[16:9 mode]
Horizontal : 128°
Vertical : 71°
[4:3 mode]
Horizontal : 123°
Vertical : 92° |
| Maximum Aperture Ratio |
1 : 2.1 |
| Focus Adjestment |
- |
| Focus Range |
0.7 m {27-9/16 inches} ～ ∞ |
| Aperture Range |
F2.1 |
DORI
| COMPONENT |
SPECIFICATION |
| Detect (25ppm / 8ppf) |
26.2m {86.0ft} |
| Observe (62.5ppm / 19ppf) |
10.5m {34.4ft} |
| Recognize (125ppm / 38ppf) |
5.2m {17.2ft} |
| Identify (250ppm / 76ppf) |
2.6m {8.6ft} |
System on Chip (SoC)
| COMPONENT |
SPECIFICATION |
| System on Chip (SoC) |
Ambarella S3LM |
Adjusting Angle
| COMPONENT |
SPECIFICATION |
| Adjusting Angle |
Horizontal (PAN) angle : -45° to +45°
Vertical (TILT) angle : 0 to +90°,
Azimuth (YAW) angle : -90° to +90° |
Browser GUI
| COMPONENT |
SPECIFICATION |
| GUI/Setup Menu Language |
English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser *2 |
Microsoft Edge, Firefox, Google Chrome |
Network
| COMPONENT |
SPECIFICATION |
| Network IF |
10Base-T / 100Base-TX, RJ45 connector |
| Resolution |
[16:9 mode (30 fps mode/25 fps mode)]
2560x1440/ 1920×1080/ 1280×720/ 640×360/ 320×180
[16:9 mode (2688x1520 30 fps mode/25 fps mode)]
2688x1520/ 1920×1080/ 1280×720/ 640×360/ 320×180
[4:3 mode (30 fps mode/25 fps mode)]
1280x960/ 640x480/ 320x240
[4:3 mode (15 fps mode/12.5 fps mode)]
2048x1536/ 1280x960/ 640x480/ 320x240 |
| H.265/H.264 Transmission Type *3 |
[Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast port (AUTO)/ Unicast port (MANUAL)/ Multicast |
| JPEG (MJPEG) Image Quality |
10 steps: 0(SUPER FINE) - 9(LOW) |
| Smart Coding |
GOP(Group of pictures) control
On(Frame rate control) */ On(Advanced) */ On(Mid)/ On(Low)/ Off
*On(Frame rate control) and On(Advanced) are only available with H.265.
AUTO VIQS
On/ Off |
| Audio Compression Method *4 |
G.726 (ADPCM) : 16 kbps / 32 kbps, G.711 : 64 kbps, AAC-LC : 64 kbps / 96 kbps / 128 kbps |
| Supported Protocol |
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP,
SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP,
DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP,
IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT |
| No. of Simultaneous Users |
Up to 14 users (Depends on network conditions) |
| Secure |
Device Certificate GlobalSign® pre-installed, HTTPS,
User authentication, Digest authentication, Host authentication,
IEEE802.1X, System log, Image transmission log, Brute-force protection |
| SDXC/SDHC/SD Memory Card (Option) |
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB |
| Mobile Terminal Compatibility |
iPad / iPhone (iOS 8.0 or later), AndroidTM terminals |
| ONVIF® Profile |
G / S / T |
Alarm
| COMPONENT |
SPECIFICATION |
| Alarm Source |
VMD alarm, SCD alarm, Command alarm, Audio detection alarm |
| Alarm Actions |
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
Input/Output
| COMPONENT |
SPECIFICATION |
| Audio Input |
- |
| Audio Output |
- |
| External I/O Terminals |
- |
| Monitor Output |
- |
General
| COMPONENT |
SPECIFICATION |
| Safety |
UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC |
FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 |
| Power Source |
PoE （IEEE802.3af Compliant） |
| Power Consumption |
PoE DC 48V: 110mA / approx. 5.3W(Class 2 device) |
| Ambient Operating Temperature |
–30 °C to +50 °C {–22 °F to 122 °F}
(Power On range: –20 °C to +50 °C {–4 °F to 122°F}) |
| Ambient Operating Humidity |
10 to 100 % (no condensation) |
| Wind Resistance |
Up to 40 m/s {approx. 89 mph} |
| Dimensions |
109 mm (W) × 53 mm (H) ×109 mm (D){4-19/64inches (W) × 2-3/32 inches (H) × 4-19/64 inches (D)} |
| Mass (Approx.) |
approx. 450g {0.99 lbs} |
| Finish |
Main body: Aluminum die cast,i-PRO white / Front panel:PC resin,Clear |
|
